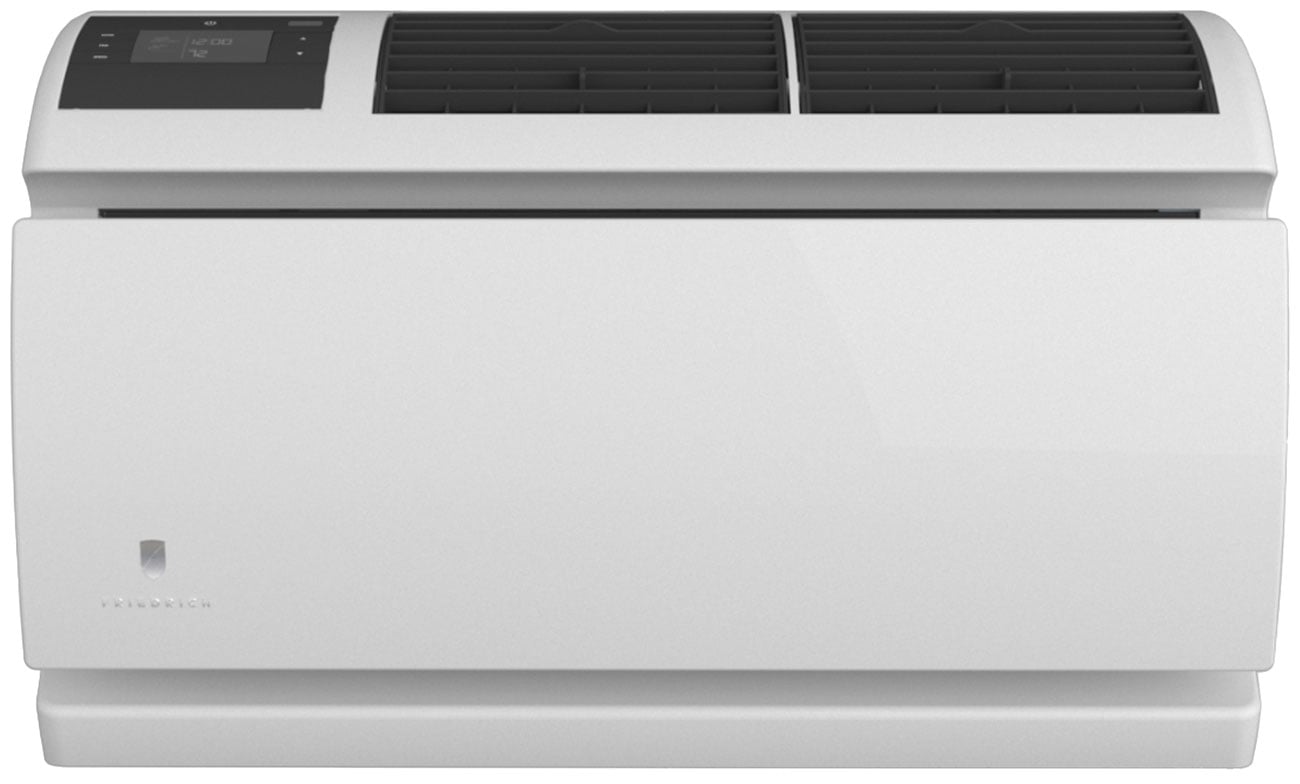

Friedrich · Model WHVT14B33B
WallMaster Smart Inverter Through-the-Wall Air Conditioner with Heat Pump 15,200 BTU in
A through-the-wall air conditioner rated at 15,200 BTU for rooms up to 600 sq ft. It heats in winter too and installs in a wall sleeve.
$1,699
List priceNo live retailer for this exact model right now.
Last listed at Abt Electronics for $1,699 on Oct 14, 2026, out of stock.
The closest through-the-wall unit you can buy today:
Friedrich Wallmaster 12,000 BTU Through-the-Wall Air ConditionerCovers up to 550 sq ft In stock$1,349View Or look for this exact model on Amazon:
Search Amazoncompare.ac may earn a commission on purchases, at no cost to you. As an Amazon Associate I earn from qualifying purchases.
Will it cool your room?
This unit's cooling matches a 600 sq ft room. Set your room size to check the fit for your space.
Estimated from ENERGY STAR's published annual energy use at about 750 hours of cooling a year (the DOE test standard) and the US average electricity price of 18.44¢/kWh (U.S. Energy Information Administration, Electric Power Monthly Table 5.6.A (residential average, May 2026)). A standardized figure for comparison; your real cost depends on how much you run it, your local rate and your climate.
Local rates vary widely (about 15¢/kWh in Florida to 33¢ in California), and hotter regions run their AC more hours, so your real cost differs.
At a glance
Best for replacing a through-the-wall unit in an existing wall sleeve.
Performance
- Cooling capacity
- 15,200 BTU · 4.5 kW
- Heating capacity
- Yes
- Heat source
- Heat pump
- Room coverage
- up to 600 sq ft
- Energy Star
- Yes
- CEER
- 12.8
- Annual energy (cooling)
- 838 kWh
Noise, size & features
- Model number
- WHVT14B33B
- Indoor noise
- Not published
- Outdoor noise
- Not published
- Indoor unit
- Not published
- Outdoor unit
- None
- Refrigerant
- R-32
- Wi-Fi / app
- Not published
- Outdoor unit needed
- No
- Wall sleeve
- Fits 27 in. sleeves
Will it fit your wall sleeve?
Made for existing 27-inch sleeves, including Fedders A sleeves and, with Friedrich's baffle kit, the deeper Fedders B; it mounts flush with the outside wall. A new installation needs Friedrich's WSE or WSEZ sleeve (27 x 16¾ x 16¾ in.), sold separately. Source: Friedrich WallMaster product page
Every through-the-wall AC and PTAC by the sleeve it fitsWhat is good
- ENERGY STAR certified, which 7 of the 50 through-the-wall units we list offer.
- Uses R-32 (GWP 675), the low-GWP class new US residential equipment moved to.
Installation & the rules that apply
This is a through-the-wall air conditioner. It sits in a sleeve built into an exterior wall, so the window-unit mounting and bracket rules do not apply to it. Swapping it into an existing sleeve is a like-for-like replacement; cutting a new opening changes the building's exterior wall, which usually needs a building permit and, in a condo, co-op or historic building, approval first.
Slides into a wall sleeve
R-32
Common questions about the Friedrich WallMaster Smart Inverter Through-the-Wall Air Conditioner with Heat Pump 15,200 BTU in
- How much does the Friedrich WallMaster Smart Inverter Through-the-Wall Air Conditioner with Heat Pump 15,200 BTU in cost to run per year?
- About $155 a year. Estimated from ENERGY STAR's published annual energy use at about 750 hours of cooling a year (the DOE test standard) and the US average electricity price of 18.44¢/kWh (U.S. Energy Information Administration, Electric Power Monthly Table 5.6.A (residential average, May 2026)). A standardized figure for comparison; your real cost depends on how much you run it, your local rate and your climate.
- How energy-efficient is the Friedrich WallMaster Smart Inverter Through-the-Wall Air Conditioner with Heat Pump 15,200 BTU in?
- Its efficiency rating is CEER 12.8, and it is ENERGY STAR certified.
- What size room does the Friedrich WallMaster Smart Inverter Through-the-Wall Air Conditioner with Heat Pump 15,200 BTU in cool?
- It is rated to cool a room up to 600 sq ft (15,200 BTU · 4.5 kW).
- Do I need a professional to install the Friedrich WallMaster Smart Inverter Through-the-Wall Air Conditioner with Heat Pump 15,200 BTU in?
- Not to replace a unit, but usually yes for a new opening. Sliding it into an existing wall sleeve it fits is a job you can do yourself (it is heavy, so plan on two people), with no refrigerant work. A new installation means cutting an opening through an exterior wall and fitting a sleeve, which is contractor work and usually needs a building permit.
- Does the Friedrich WallMaster Smart Inverter Through-the-Wall Air Conditioner with Heat Pump 15,200 BTU in heat as well as cool?
- Yes. It is a heat pump that also heats.
